ATN ThOR 4 384 1.25-5x

Digital Thermal Imaging System

$ 1,799 add to cart

HOW TO VIDEOS firmware

The Next Generation of Thermal Sensors are here and they are Powered by ATN’s Obsidian IV Dual core. Prey beware!

Choose Sensor:

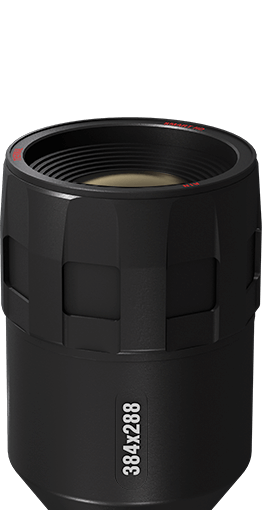

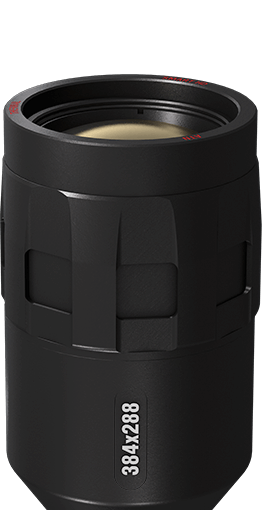

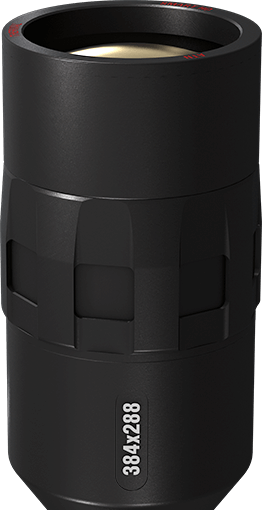

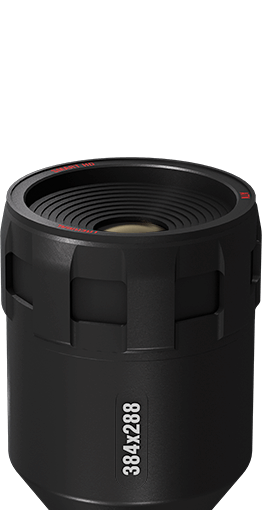

Choose Lens:

Thermal Detection Range Chart

Detection

750

Recognition

335

Identification

205

Detection: 1.5 pixels / 0.75m = 2 pixels per meter

Recognition: 6 pixels / 0.75m = 8 pixels per meter

Identification: 12 pixels / 0.75m = 16 pixels per meter

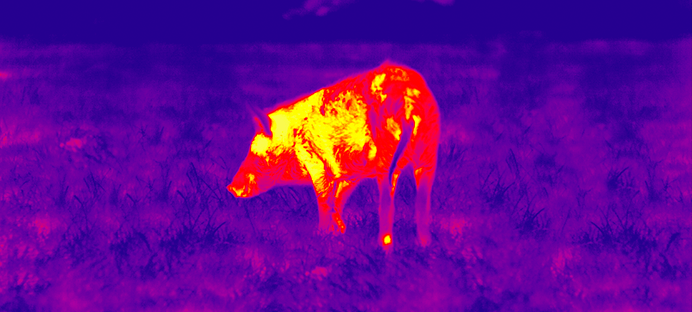

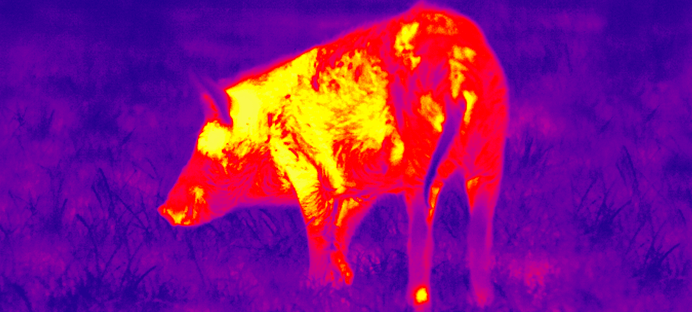

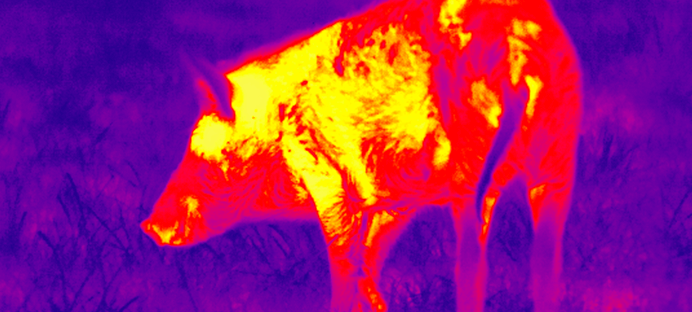

Ultra sensitive next gen sensor

Video Record

up to 64GB

Record and Share your Experience with a press of a button.
Video files stored on an internal micro SD card.

Easy to mount — Easy to use

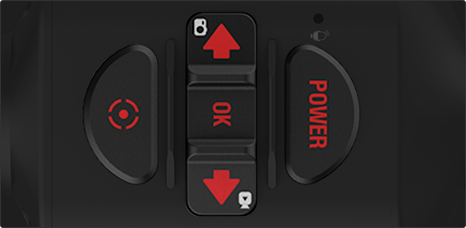

New controls

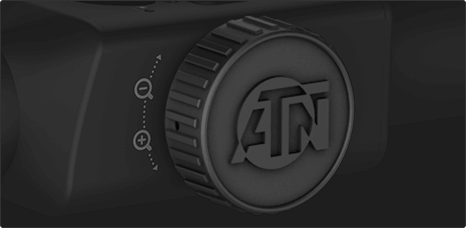

Spin to Zoom Wheel - what could be more Natural. While the new Tactile Buttons let you feel every click for optimal control.

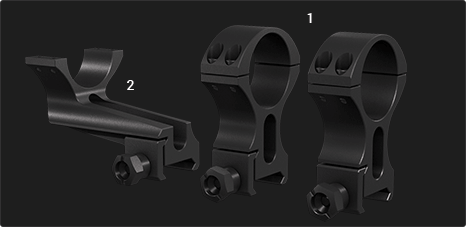

Included:

1. Standard rings

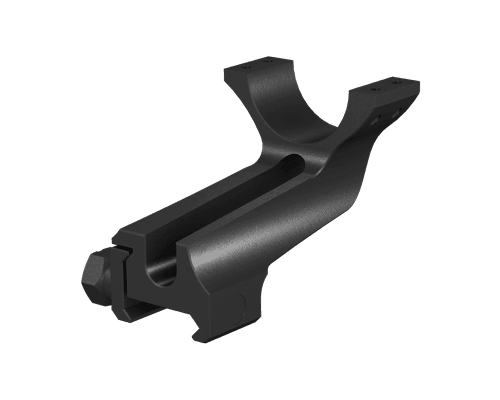

2. L-shape ring

Classical Ergonomics

21st Century Technology designed to make your Experience easy and familiar

EASY OPTICS ZEROING

Sighting in your optics has never been easier with Easy Optics Zeroing.

Smart Range Finder

Fast and Easy way to make a good distance estimation. Take two easy readings of your target and our system will not only range in on your prey but adjust your Point of Impact instantaneously.

Ballistic Calculator

No more complicated chart tablets and calculations. Range, Wind, Multiple Profiles, Angle to target, Temperature, Humidity, more...

Profiles

R Type 223 Remi

Drag Function G1

Ballistic Coefficient 0.371

B. Weight 55 gr

Initial Velocity 2850 fps

Zero Range 100 yd

Sight Height 1.5 in

S.Angle -2°

Environment

Relative Humidity 85%

Wind Speed 14 mph

Wind Direction -45°

Temperature 59°F

Barometric Pressure 29.92 hg

Altitude 1800 ft

Dual Stream Video

You asked and we listened.
Obsidian 4 not only Streams Video at HD resolution but can simultaneously
Record to the SD card inside.

At the same time!

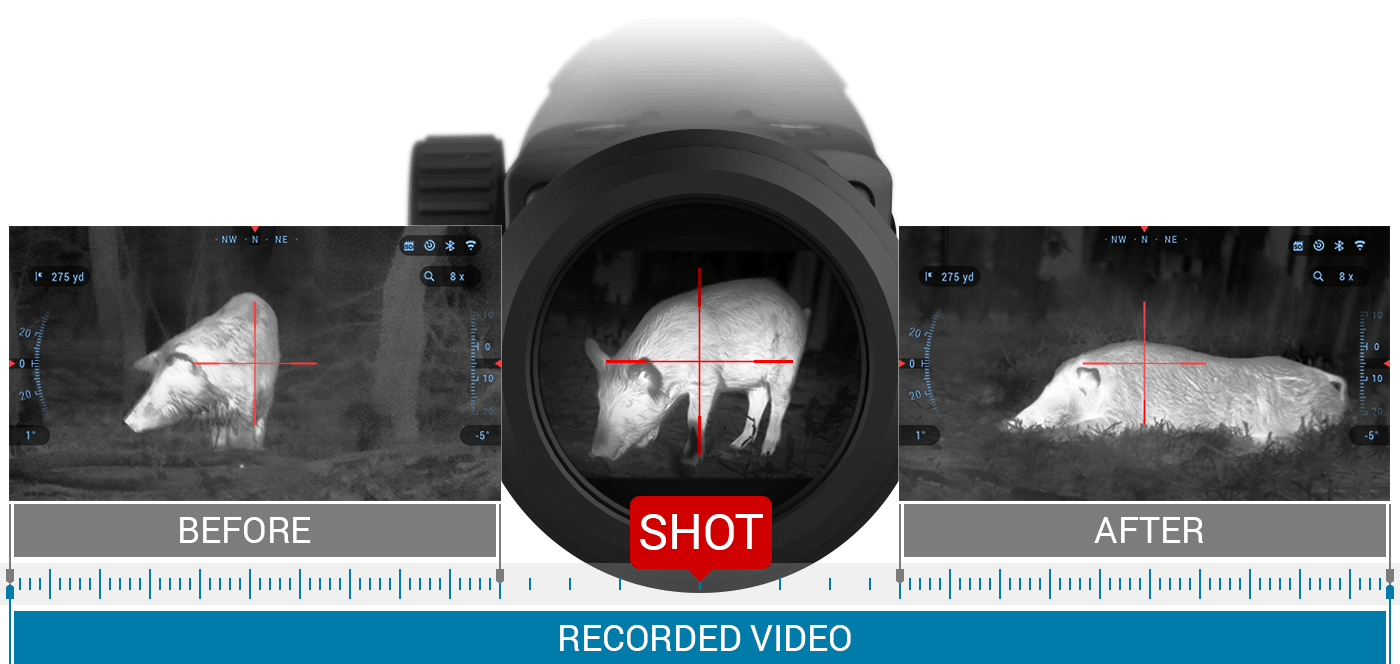

Recoil activated video

Never miss that Excellent Moment. Turn on RAV and let the ThOR 4 Record directly to your SD card.

Recoil Activated Video (RAV) takes care of all your worries. Just relax and focus on your game and let the Obsidian Core do the heavy lifting.

Ultra Low Power Consumption

Our new Dual Core Processor not only runs fast but runs cool.
1st ever digital optics with over 16hrs of continuous battery power.

18+

Hours of Continuous Use

Recoil
Resistant

Designed to withstand the pressures. The ThOR 4 is built out Hardened Alluminium Alloy with Impact Resistant Electronics.

TECHNICAL SPECIFICATIONS

	ATN ThOR 4 384 1.25-5x	ATN ThOR 4 384 2-8x	ATN ThOR 4 384 4.5-18x	ATN ThOR 4 384 7-28x	ATN ThOR 4 640 1-10x	ATN ThOR 4 640 1.5-15x	ATN ThOR 4 640 2.5-25x	ATN ThOR 4 640 4-40x
SKU	TIWST4381A	TIWST4382A	TIWST4384A	TIWST4387A	TIWST4641A	TIWST4642A	TIWST4643A	TIWST4644A
Sensor	Gen 4 384x288, 60Hz				Gen 4 640x480, 60Hz
Magnification	1.25-5x	2-8x	4.5-18x	7-28x	1-10x	1.5-15x	2.5-25x	4-40x
Field of view, degrees	16x12.5	12x9.5	6x4.7	5x3.8	32x25	24x19	12.5x9.7	8.3x6.2
Core	ATN Obsidian IV Dual Core T
Micro Display	1280x720 HD Display
Eye relief	90 mm
Video Record Resolution	1280x960 @ 60 fps
Ballistic Calculator	Yes
WiFi (Streaming, Gallery, & Controls)	iOS & Android
Bluetooth	Yes
3D Gyroscope	Yes
3D Accelerometer	Yes
E-Barometer	Yes
Smart Range Finder	Yes
RAV (Recoil Activated Video)	Yes
Electronic Compass	Yes
Smooth Zoom	Yes
Reticles	Multiple Patterns & Color Options
Microphone	Yes
Micro SD card	4 to 64 Gb
Micro USB, type C	Yes
Mount	30 mm Standard Rings (included)
Battery life (Li-ion)	18 + hrs				16 + hrs
Waterproof rating / IP rating	Weather resistant
Smart Mil Dot Value Range	4.0-10		2.0-10	1.0-10	4.0-10		2.0-10	1.0-10
Human Detection Range	750	960	1800	3000	830	1050	1950	3300
Human Recognition Range	335	480	720	1320	350	530	800	1450
Human Identification Range	205	300	430	720	225	330	475	800
Operating Temperature	-20°F to +120°F / -28°C to 48°C
Dimensions	13.1"x3"x3" / 332x76x76 mm	13.5"x3"x3" / 343x76x76 mm	13.8"x3"x3" / 351x76x76 mm	14.8"x3"x3" / 375x76x76 mm	13.1"x3"x3" / 332x76x76 mm	13.5"x3"x3" / 343x76x76 mm	13.8"x3"x3" / 351x76x76 mm	14.8"x3"x3" / 375x76x76 mm
Weight	1.93 lb / 0.88 kg	2.03 lb / 0.92 kg	2.2 lb / 1.0 kg	2.35 lb / 1.06 kg	1.93 lb / 0.88 kg	2.03 lb / 0.92 kg	2.2 lb / 1.0 kg	2.35 lb / 1.06 kg
Warranty	3 years

* This product is subject to one or more of the export control laws and regulations of the U.S. Government and it falls under the control jurisdiction of either the US Department of State or the US BIS-Department of Commerce. It is unlawful and strictly prohibited to export, or attempt to export or otherwise transfer or sell any hardware or technical data or furnish any service to any foreign person, whether abroad or in the United States, for which a license or written approval of the U.S. Government is required, without first obtaining the required license or written approval from the Department of the U.S. Government having jurisdiction. For further information please contact ATN.

Included accessories

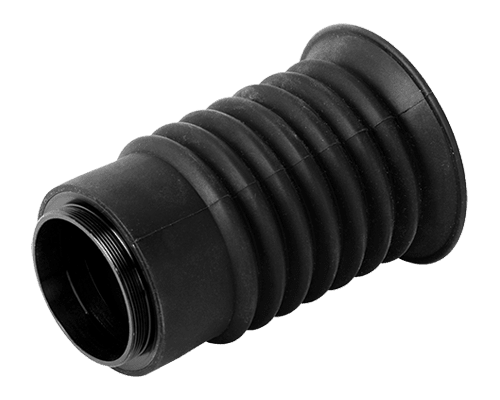

Eyecup

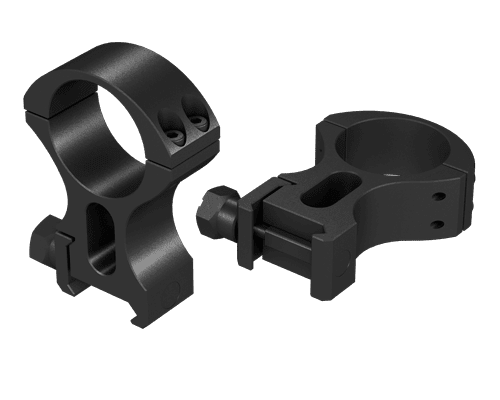

Standard rings (2pcs.)

L-shape ring

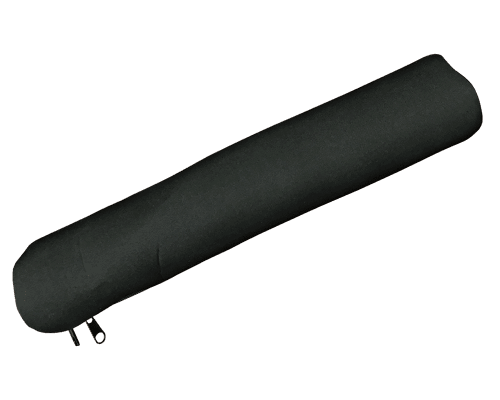

Cover

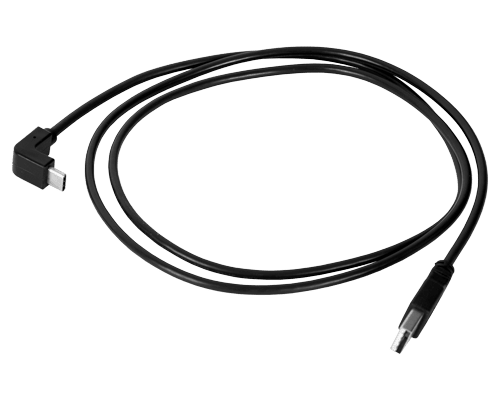

USB-C Cable

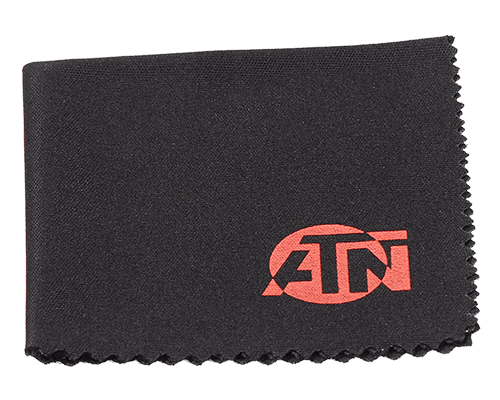

Lens Tissue
